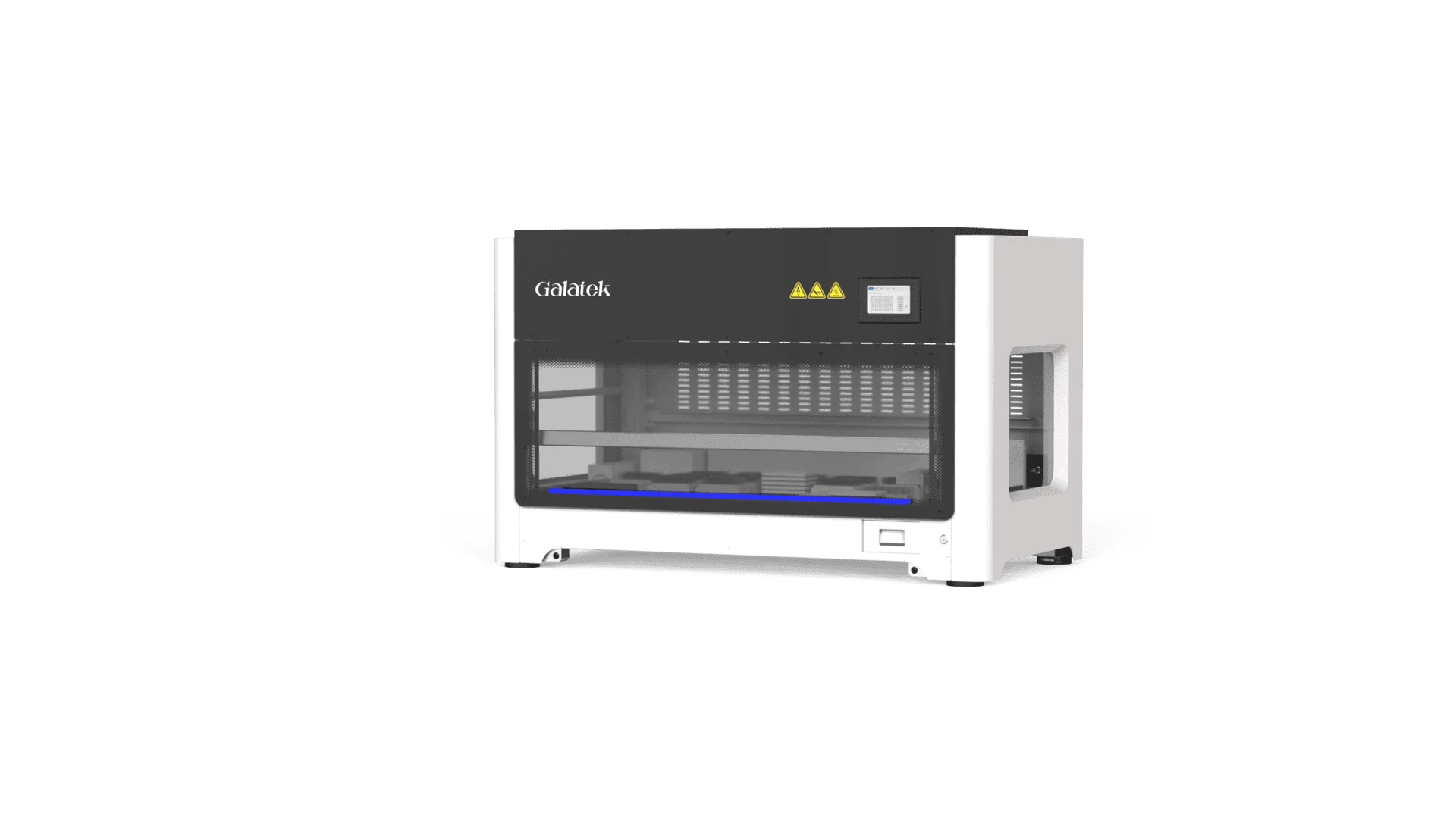

Automated Liquid Handling: Auflo-P1600

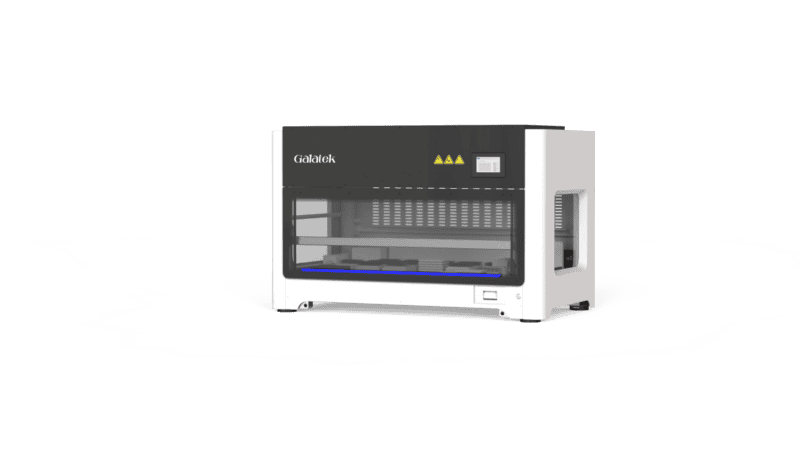

The Galatek Auflo-P1600 is a liquid handling workstation with 8 independent 1000 µl pipetting channels and a deck of 40 SBS plate positions, aimed at NGS library preparation and other multi-step protocols. The pipetting range is 2 to 1000 µl and the channel spacing is adjustable from 9 to 18 mm, so transfers between tube racks and plates need no separate head.
Quote-based, no public pricing. Add to your quote and our specialists put together a proposal with the right documentation, typically within 24 hours.
This instrument in detail
- 8 independent 1000 µl channels, spacing adjustable from 9 to 18 mm
- Pipetting range 2 to 1000 µl
- Deck with 40 standard SBS plate positions
- Drag-and-drop process editing with graphical deck layout
- Work list and CSV import
- 1550 x 750 x 760 mm, 170 kg

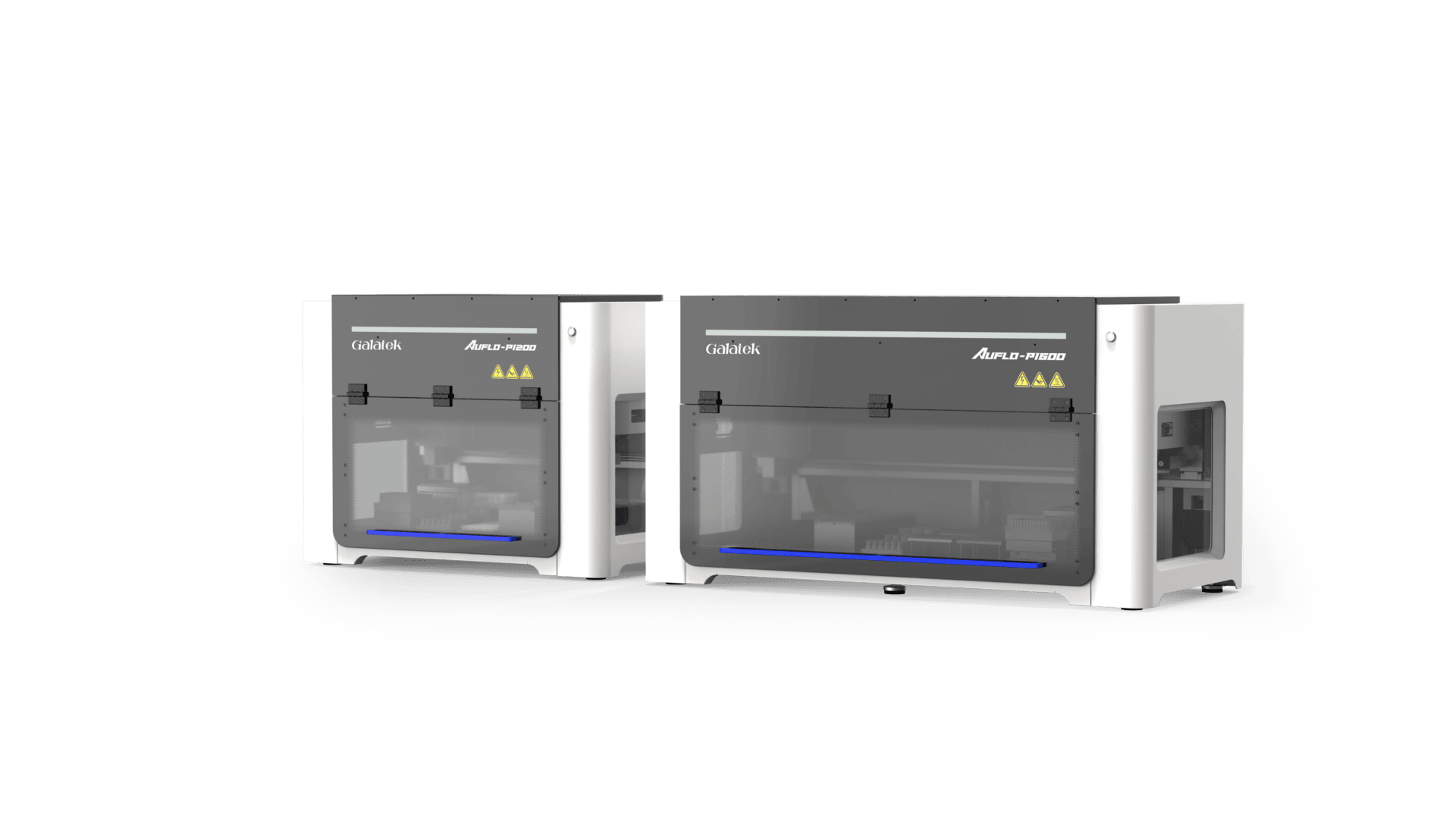

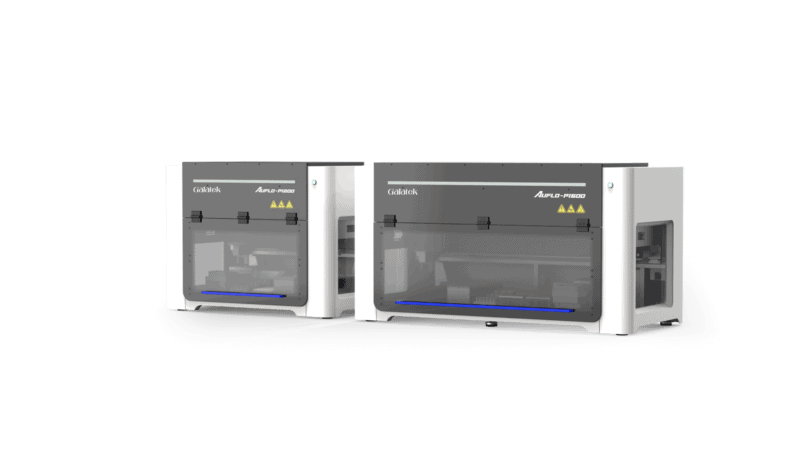

The Galatek Auflo-P1600 is the larger of the two Auflo workstations: 8 channels instead of 4, and a deck of 40 SBS positions instead of 25. That combination is what makes a full library preparation fit on the deck in one go.
Pipetting
Eight independent channels with a range of 2 to 1000 µl and a spacing adjustable from 9 to 18 mm. The brochure prints precision figures of 3.00, 5.00, 2.00 and 0.75 per cent CV; which figure belongs to which volume could not be read unambiguously, so the pairing is not reproduced here.

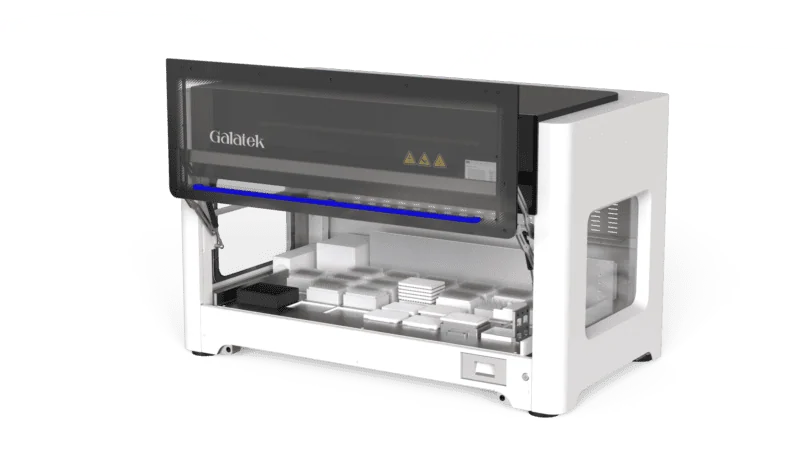

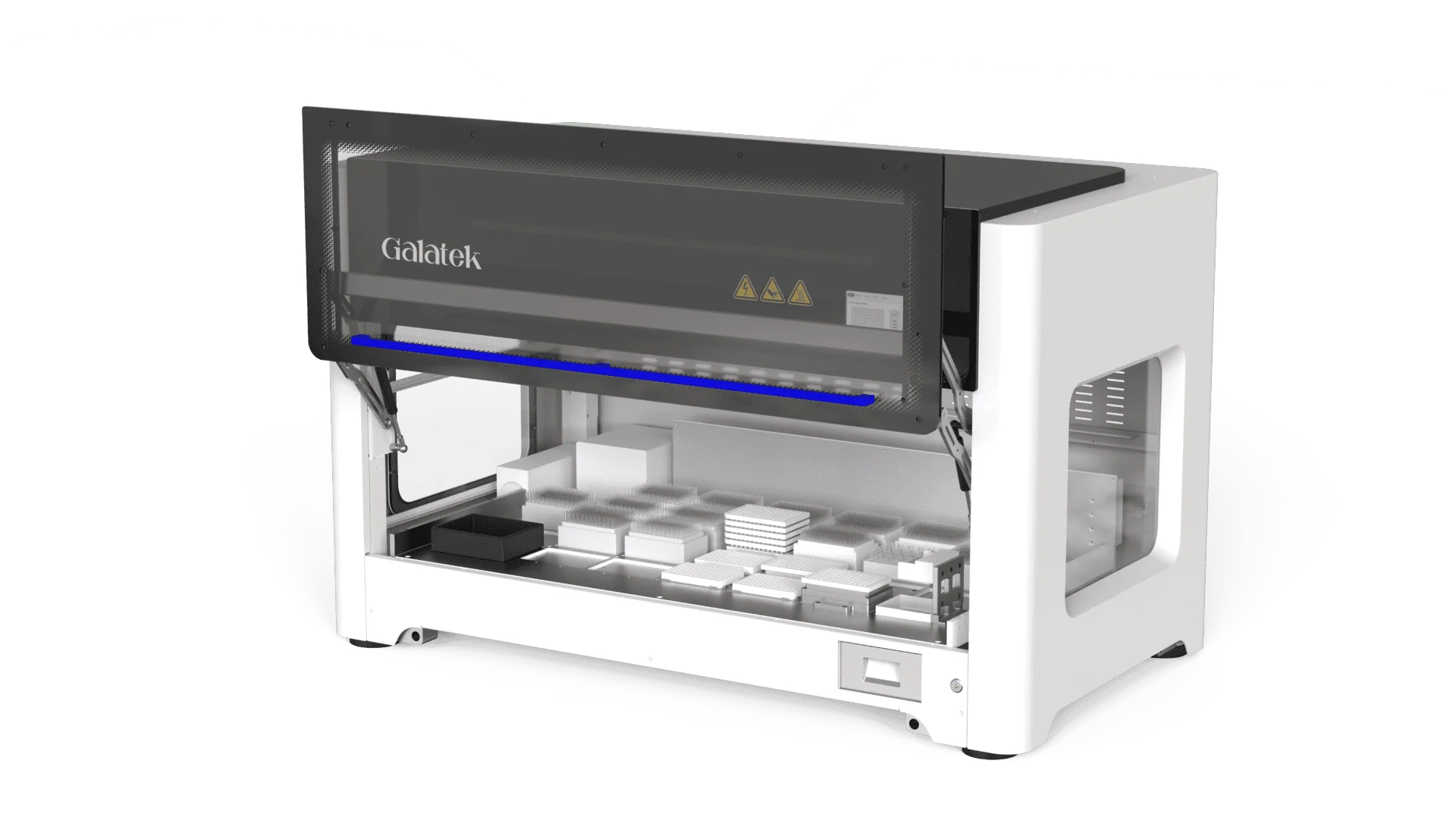

Deck and labware

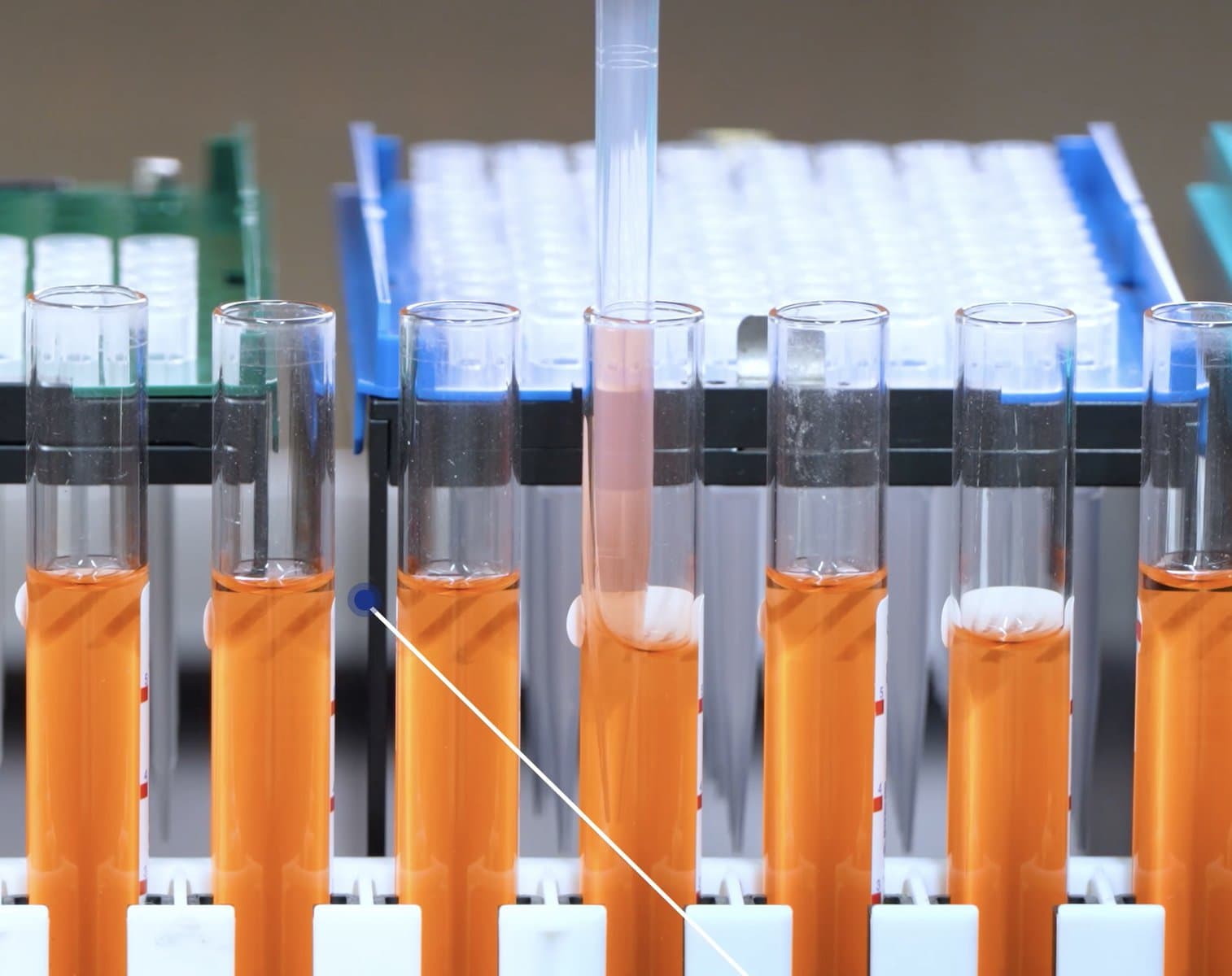

Forty standard SBS positions, taking 96 and 384 well plates, deep-well plates, ELISA plates, cell culture plates, blood collection tubes, centrifuge tubes, loading slots and tip boxes.
Applications
Named applications are PCR set-up, NGS library preparation, blood dispensing, ELISA, organoid culture, high-throughput drug screening, cell plating, plasmid construction and enzyme activity screening. Protocols are built by drag and drop with a graphical deck layout, and work lists and CSV files can be imported. Dimensions are 1550 mm wide, 750 mm deep and 760 mm high, weight 170 kg.
- Dimensions: 1600mm x 770mm x 970mm
- Weight: 170kg
- Rated power: 320W
- Operating temperature: 15°C–32°C
- Humidity: 30–80% (non-condensing)
